Large-Flow Whole-House Water Treatment System PVDF Cleanable UF Membrane 304 Stainless Steel Water Filtration System
Production Description
Pretreatment three-tank process flow:
Raw water tank-raw water pump-quartz sand filter-activated carbon filter-resin softener-security filter-high pressure pump-RO reverse osmosis system-pure water tank
Parameter Table
| Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
| YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
| YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
| YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
| YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
| YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
| YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
| YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Key advantages
Reduce operating costs: The operating cost of the pure water system of reverse osmosis water treatment equipment is relatively low, and long-term use can save a lot of operating costs for enterprises.
High efficiency: Reverse osmosis equipment can effectively remove various impurities and harmful substances in water, such as bacteria, viruses, heavy metal ions, organic matter, ammonia nitrogen, etc., so that the water quality is significantly improved.At the same time, reverse osmosis equipment also has a high recovery rate and water production, which can meet most industrial and domestic water needs.
Maintance
Flush with water that meets the inlet water index of reverse osmosis. In order to prevent precipitation, the low-pressure flushing temperature is 20 ℃ until the pH and conductivity of the water discharged from the cleaning outlet are close to the inlet water index.
Open the inlet valve and outlet valve of chemical cleaning, start the chemical cleaning pump and flush the pipeline.

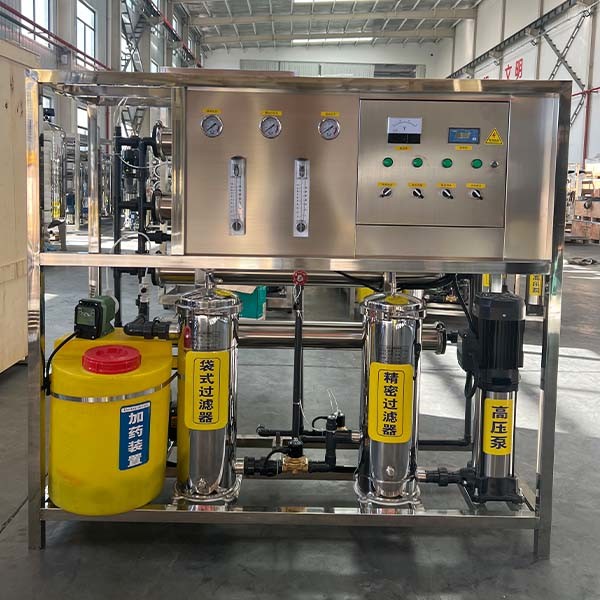

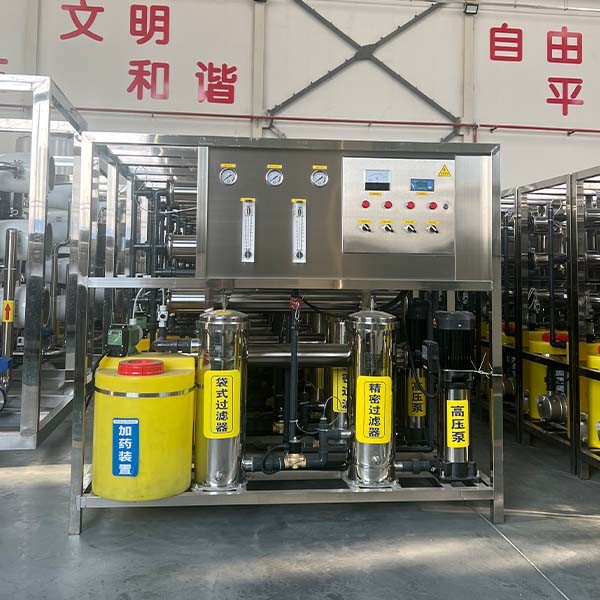

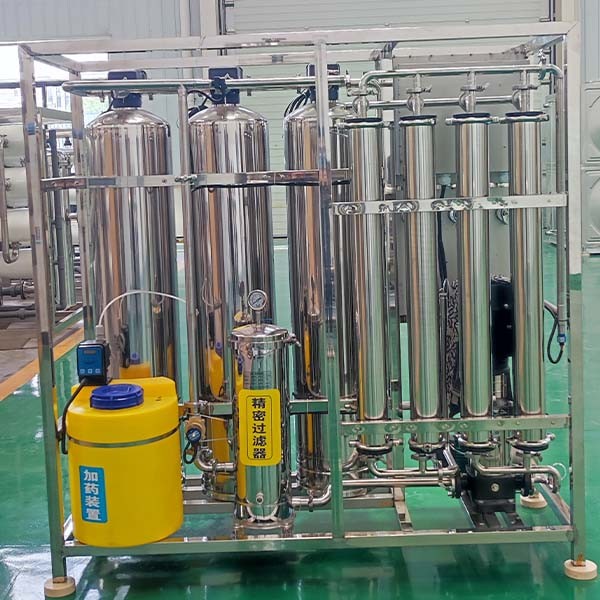

Product Display
