Brand Name : HYJB
Model Number : 1T
Place of Origin : Zhengzhou,China
MOQ : 1 set
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 200 sets per month
Delivery Time : 7days
Packaging Details : Wooden Case
Operating pressure : 0.9MPA
Core Components : Pump
Applicable Industries : Manufacturing Plant
Weight after water test : 275kw
Weight : 155kw
Size : 1500*650*1700mm
1T Double-Tank RO Water Plant Reverse Osmosis Water Treatment Machine Equipment System Plant
Production Description
Pretreatment two-tank process flow:
Raw water tank-raw water pump-quartz sand filter-activated carbon filter-scale inhibitor dosing device-security filter-high pressure pump-RO reverse osmosis system-pure water tank
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Key advantages
Energy saving and environmental protection: Compared with traditional water treatment methods, reverse osmosis technology does not need heating, has low energy consumption and is environmentally friendly.At the same time, it can remove harmful substances in water and reduce environmental pollution.
Wide range of applications: whether it is industrial, agricultural or medical and other fields, 1 ton double tube tank reverse osmosis water treatment equipment can meet its demand for water quality.Especially for those industries with high requirements for water quality, such as medicine, electronics and so on, it is an indispensable helper.
Maintance
Check and adjust operating parameters
Check the operating parameters, such as water inlet pressure, flow, temperature, etc., to ensure that they are within the normal range.
Adjust the parameters: in case of any abnormality, adjust the parameters or check the relevant components in time to ensure the normal operation of the equipment.
Product Display
![]() |

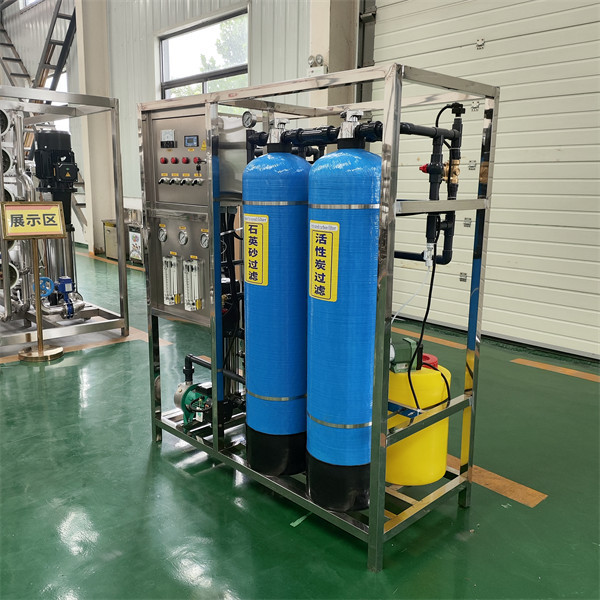

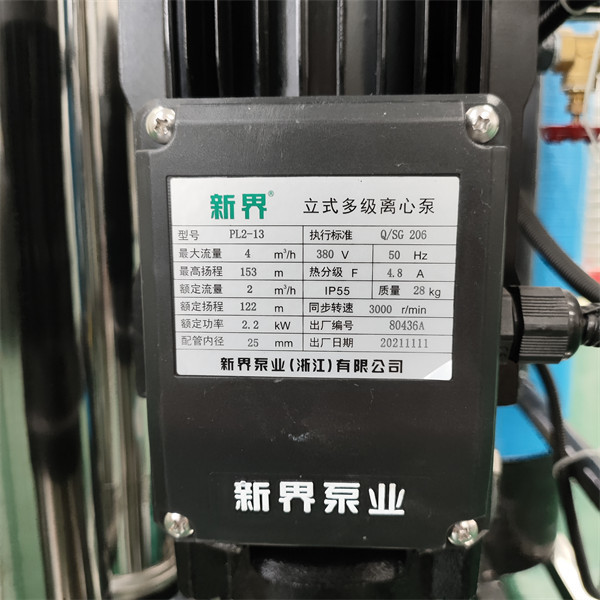

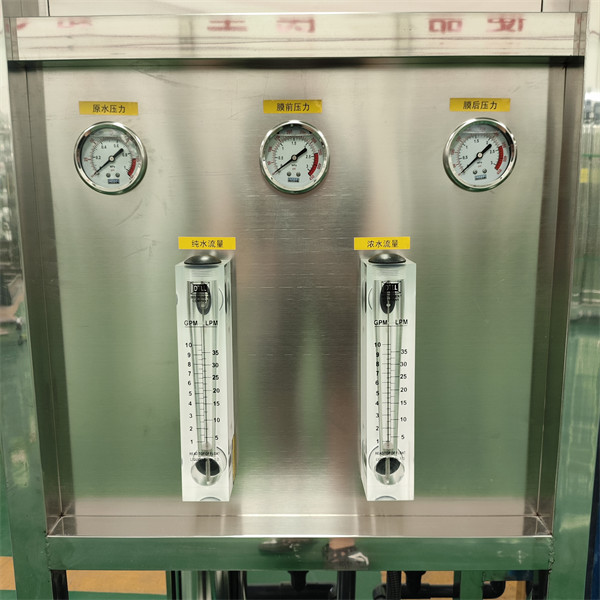

1T Double-Tank RO Water Plant Reverse Osmosis Water Treatment Machine Equipment System Plant Images |
